G-802 SPECIFICATIONS :

Span                                29’06’’

Length                            22’05.5”

Height                             8’02.4” (ground to fin top)

Cabin elbow room        3’08”

Cabin length                  86.6”  (from rudder pedals)

Wing area                      122ft²

Wing loading                 18.93 psf

Power loading               12.83 lb/hp (180 HP)

Fuel tanks – Std            58.2 usg

Empty weight                1430 lbs

Gross weight                  2310 lbs

Useful load                      968 lbs

Utility load                      793 lbs

WING:

Root airfoil                      NACA 43015                                Span                                 10’10”

Tip airfoil                         NACA 43012                                Area                                  34 ft²

Incidence angle             2.5°

Setting angle                  1°

Wash-out angle           -1.5°

Area ratio: tail/wing    28%

Dihedral                           4.5°

Aspect ratio                    7.2

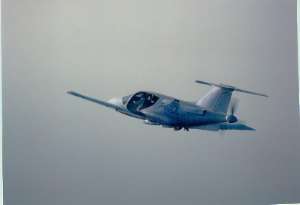

Photo Geoff Jones

PERFORMANCES (180 HP):

Take-off distance to clear 50 ft                                  1800 ft

Take-off speed                                                               75 mph

Initial rate of climb at sea level (gross weight)    885 ft/min

Maximum level speed at sea level                           205 mph

Cruise speed at 75% power at sea level                186 mph

Stall speed with flaps                                                   56 mph

Stall clean                                                                        69 mph

Landing roll                                                                     650 ft

Service ceiling at gross weight                                 14,850 ft

Maximum range with standard tanks                     932 miles
